Vacuum Membrane Press WP2 OTM
Every Piece Of Furniture Tells A Story, Every Surface Is An Art

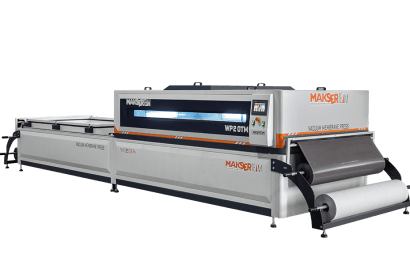

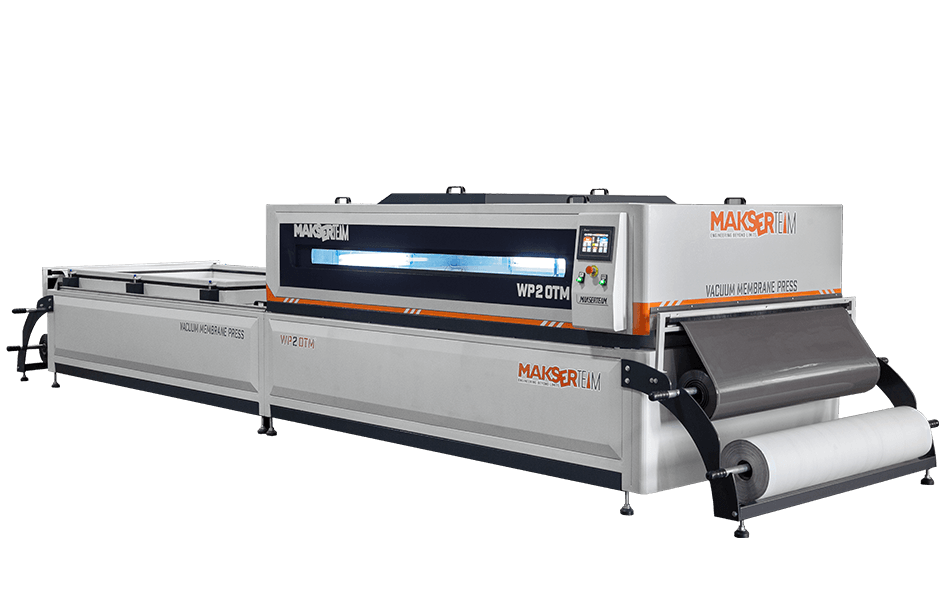

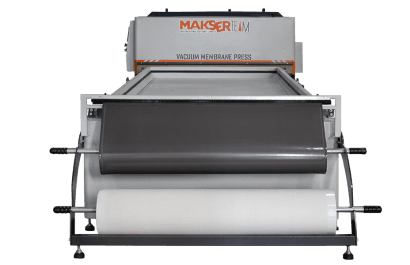

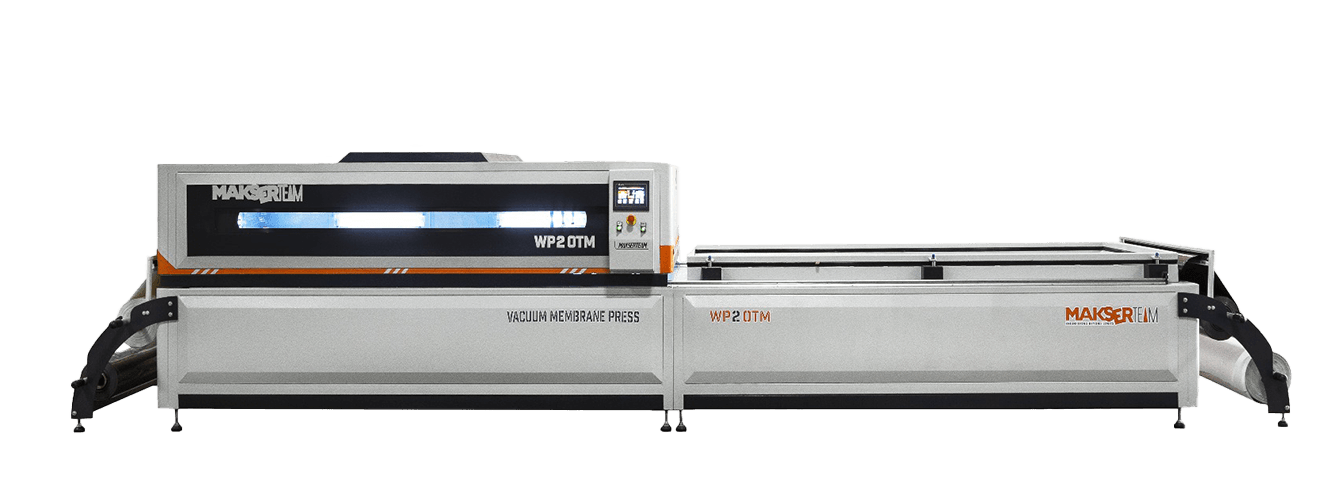

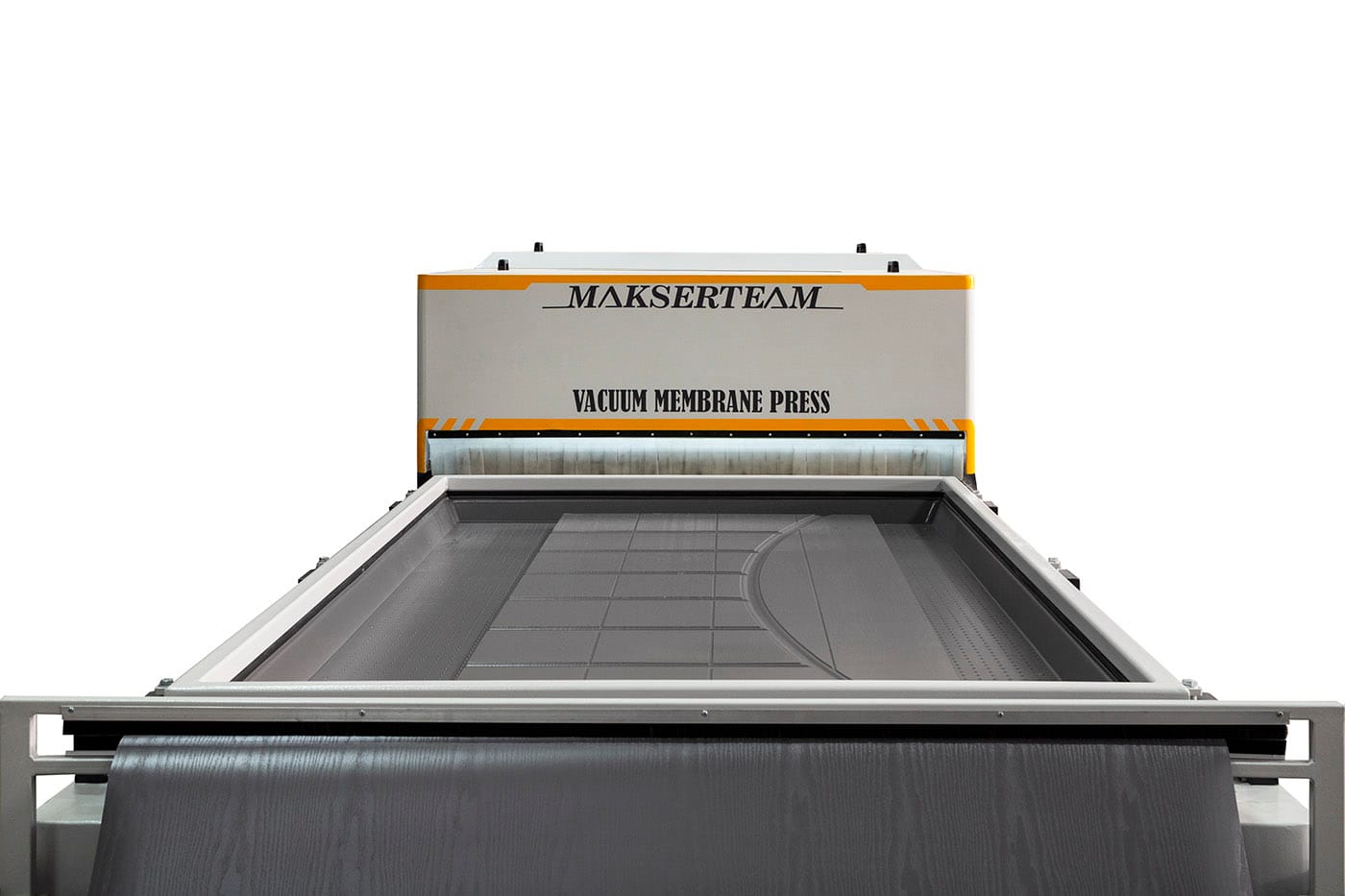

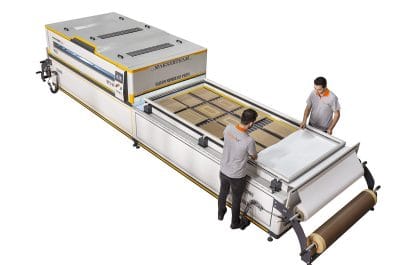

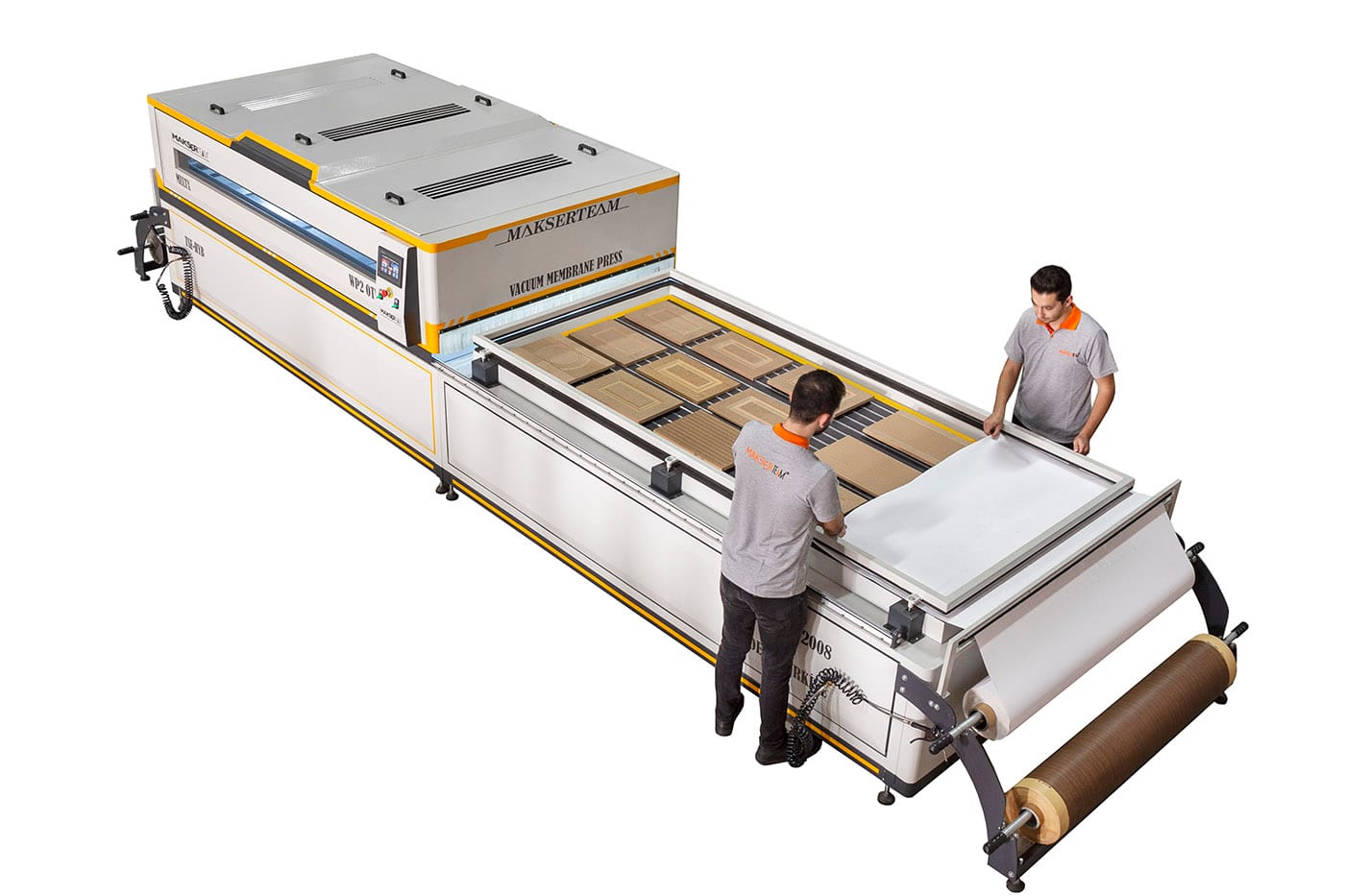

Vacuum Membrane Press WP2

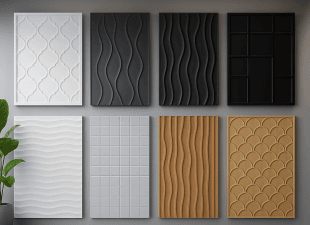

Makser WP2 brings modern surface lamination technology into furniture and decoration production lines.On the surfaces of MDF, HDF, chipboard, HPL and similar panels (optionally including the edges), thermoformable materials such as PVC foil and PET/PETG are laminated perfectly using strong vacuum and controlled heat.In this way, from kitchen and bathroom cabinet doors to table tops, interior room doors, decorative panels and office furniture, you achieve homogeneous, durable and aesthetic results across a wide range of applications.
As an advanced vacuum press system, it delivers strong adhesion and stable lamination results on all complex surfaces.

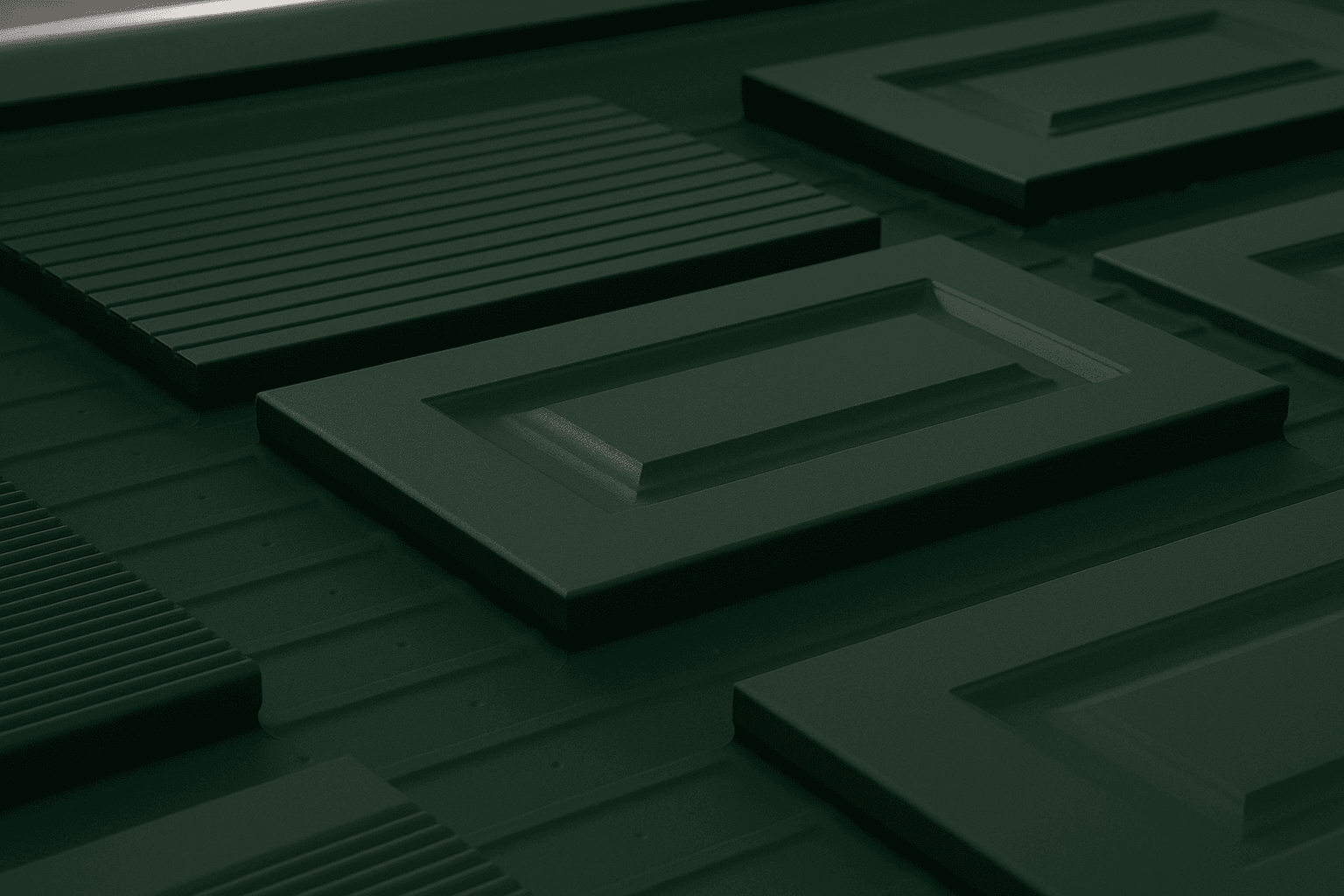

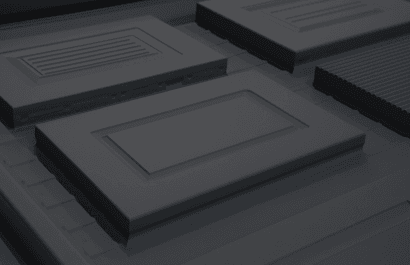

Take Your Door and Cabinet Door Production to the Next Level
Fast Production: Average cycle time of 1–3 minutes
High Quality Results: Homogeneous lamination, aesthetic appearance
Low Cost: Energy saving and reduced waste rate
Long Service Life: Robust frame structure and durable components
FEATURES THAT MAKE MAKSER MACHINES STAND OUT

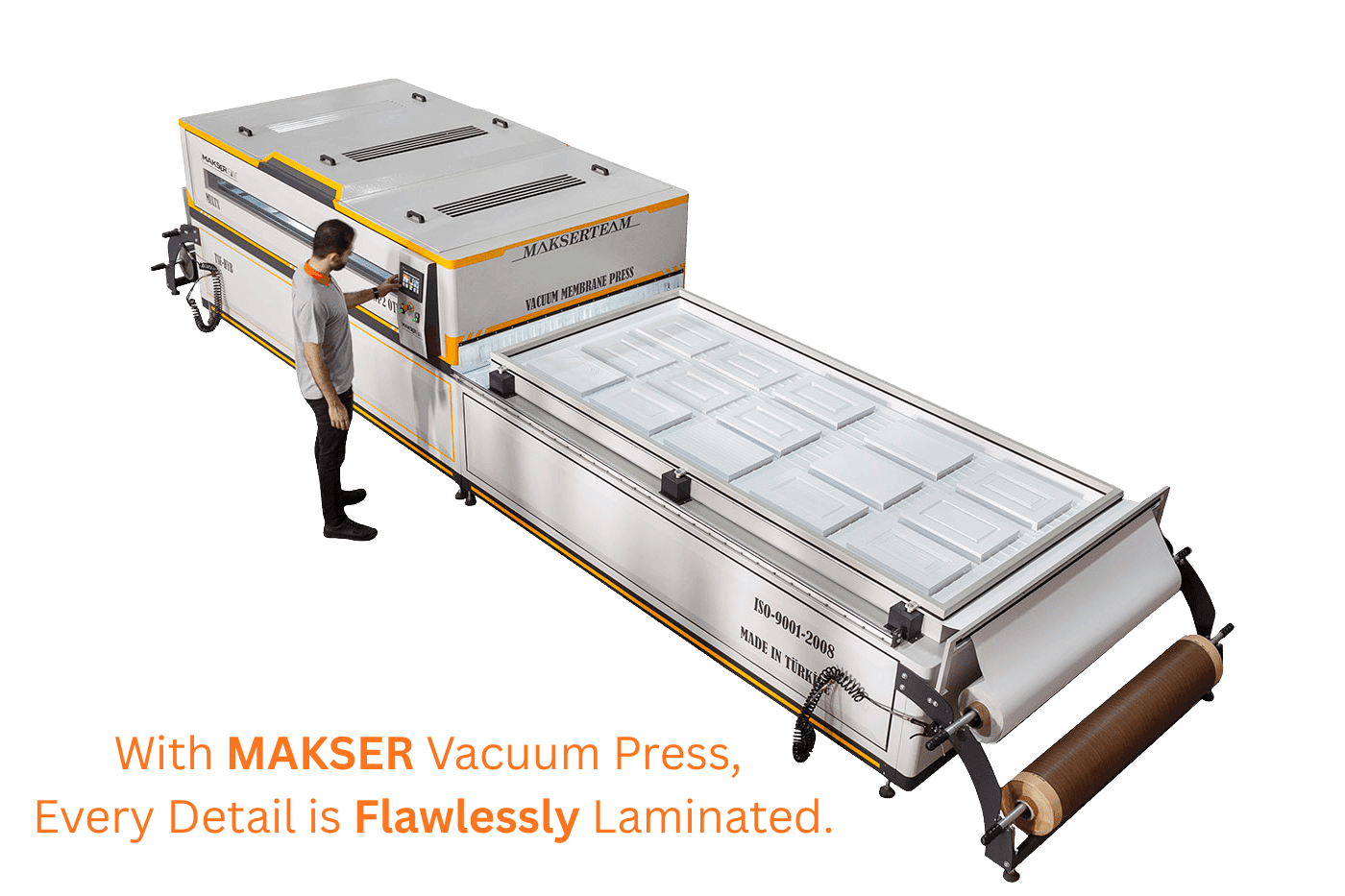

In addition to being a powerful vacuum membrane press, the WP2 also performs as a reliable vacuum press for a wide range of materials.

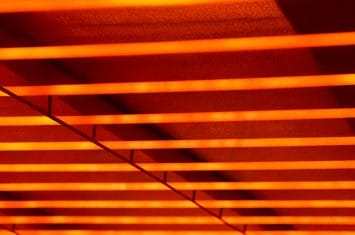

FULL-LENGTH HEATING ELEMENTS
In many machines, segmented heaters create uneven surface temperature and weak spots.
👉 Makser full-length elements ensure uniform heat and consistently smooth, high-quality lamination.

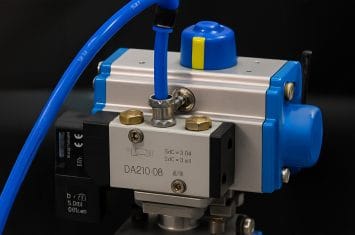

ACTUATED VALVE
Actuated valves control vacuum and pressure fully automatically and with high precision.
👉 This brings faster cycles, stable process control and a significantly lower error rate.

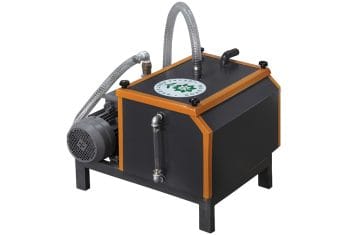

WATER-COOLED VACUUM PUMPS
Water-cooled vacuum pumps combine strong suction performance with low maintenance needs.
👉 They support quiet, efficient and environmentally friendly production conditions.

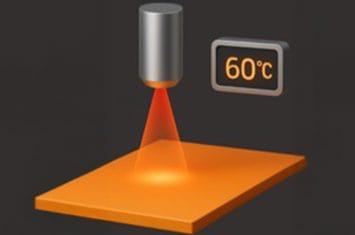

INFRARED TEMPERATURE CONTROL
Infrared sensors continuously measure the temperature directly on the panel surface.
👉 This keeps the process in the ideal window and delivers more consistent, defect-free results.

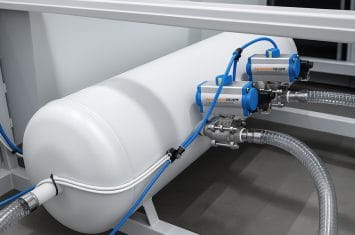

INTELLIGENT SUPPORT FOR VACUUM POWER: AIR TANK
The integrated air tank reduces the load on the vacuum motor during each cycle.
👉 Vacuum builds up faster and more evenly, lowering energy use and extending motor life.

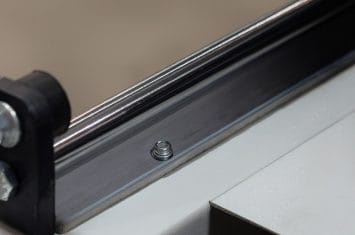

CHROME RAIL
Chrome rails offer higher wear resistance than conventional transmission rails.
👉 Smooth, low-friction motion protects positioning accuracy and ensures long-term stability.

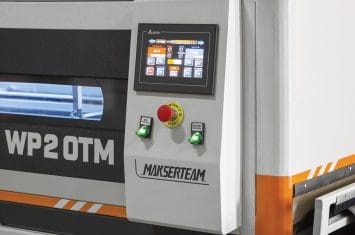

USER-FRIENDLY AND EFFICIENT
An advanced control panel and intuitive interface make the machine easy to operate.
👉 Shorter training times, fewer operator errors and higher overall productivity.

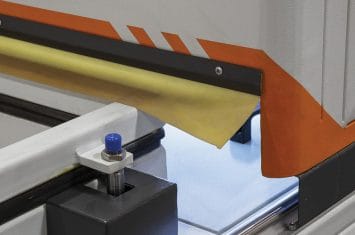

THERMAL INSULATION CURTAIN
Special insulation curtains minimise heat loss in the working area of the machine.
👉 Stable process temperatures reduce energy consumption and support sustainable production.

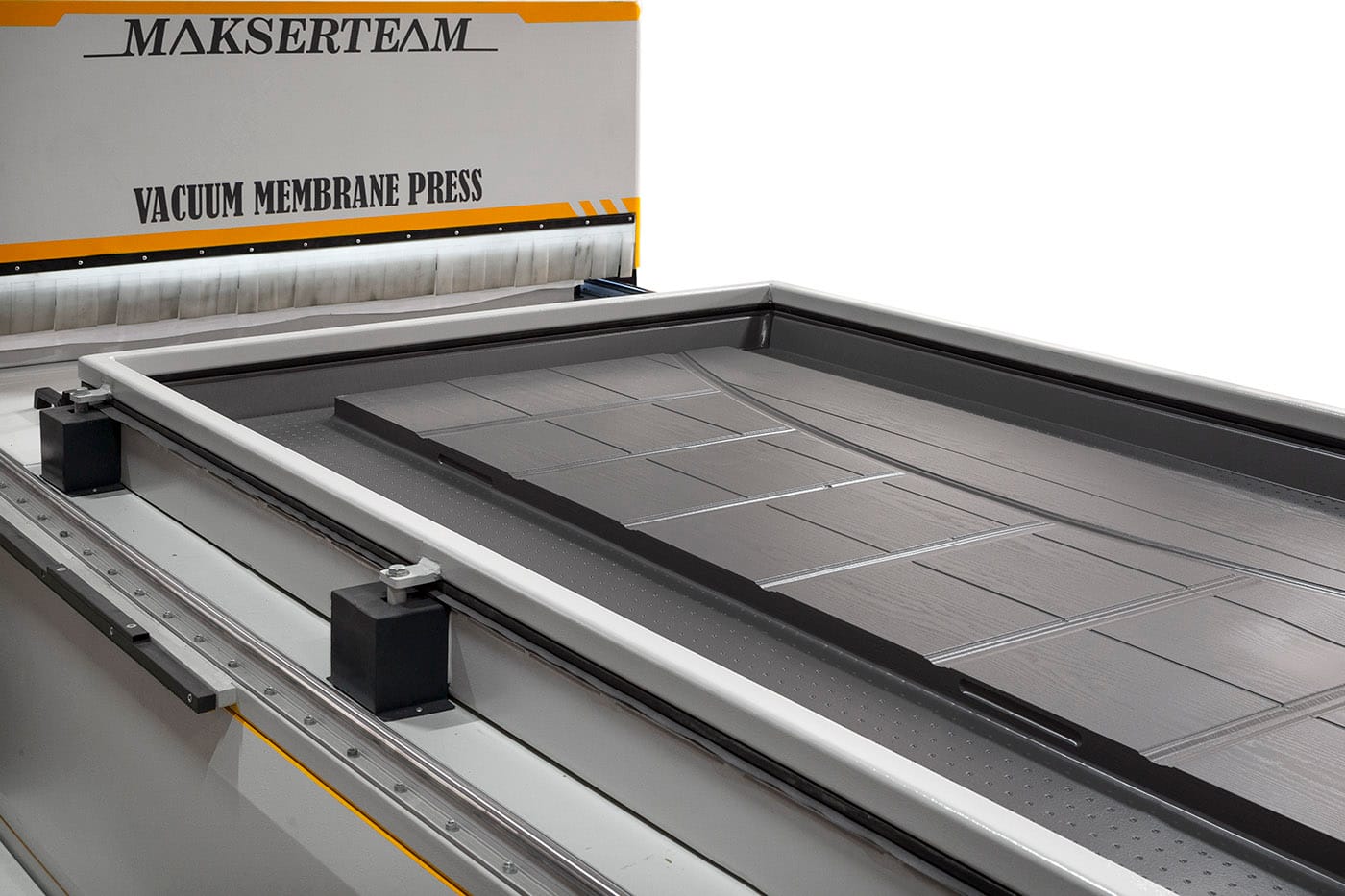

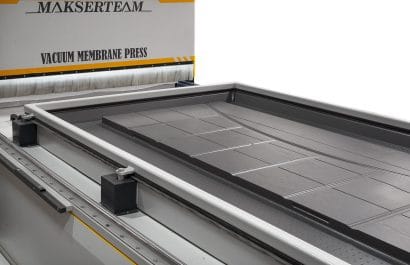

PERFORATED STEEL BASE
The robust steel base is designed to withstand high temperature and pressure loads.
👉 Its perforated structure distributes vacuum evenly, ensuring precise, repeatable lamination.

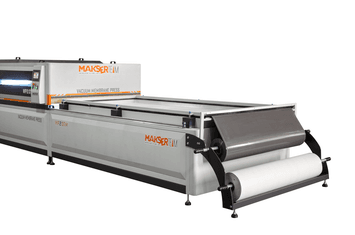

BEATING-MOUNTED PVC FOIL ROLL
Unlike conventional hanging systems, the bearing-mounted PVC foil roll holders used in Makser machines can be easily operated by a single person. 👉 Even large and heavy rolls can be pulled smoothly without requiring high force, making foil changeover fast and effortless.

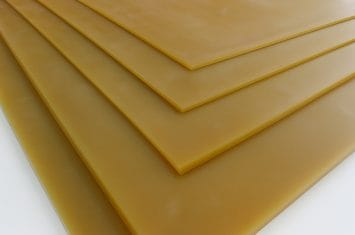

SILICONE MEMBRANE TECHNOLOGY
The silicone membrane provides excellent results, especially in natural wood veneer applications.
👉 Even pressure across the entire surface prevents air pockets and waviness for a flawless finish.
SUPERIOR SURFACE PROTECTION WITH BAKED PAINT
Oven-baked paint protects the machine body against scratches, impacts and chemicals.
👉 The surface maintains its clean, premium appearance even after years of intensive use.
WHY MAKSERTEAM
CUSTOMER-ORIENTED APPROACH
Makser not only manufactures high-quality machines, but also sets customer satisfaction as a primary goal.
👉 It adds value to your production processes with need-based solutions and continuous support.
STRONG AFTER-SALES SUPPORT
Makser’s professional technical team provides fast solutions for any maintenance and repair requirements, either remotely or on site.
👉 A reliable service network to keep your production running without interruption.
SUPERIOR MATERIAL QUAILITY AND DURABILITY
MakserTeam Vacuum Membrane Press machines are built from high-quality materials with meticulous craftsmanship. They withstand years of intensive production and deliver maximum efficiency with minimal maintenance requirements.
GLOBAL SUCCESS
MakserTeam is a strong brand extending from Türkiye to the world, providing after-sales support, spare parts and consultancy services on a global scale.
YOUR BEST PARTNER IN FURNITURE PRODUCTION
With MakserTeam Vacuum Membrane Press machines, you combine quality, speed and aesthetics in furniture production – from kitchen cabinet doors to decorative panels – adding real value to your products.

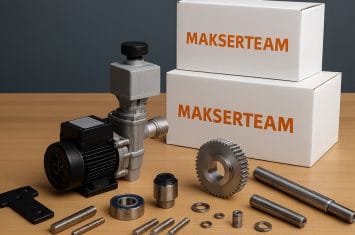

UNLIMITED SPARE PARTS SUPPORT
MakserTeam supplies fast and reliable spare parts for all its machines.
This keeps your production running without interruption and extends the service life of your machine.
Frequently Asked Questions (FAQ) – Makser Vacuum Membrane Press Machines
What is a vacuum membrane press and where is it used?

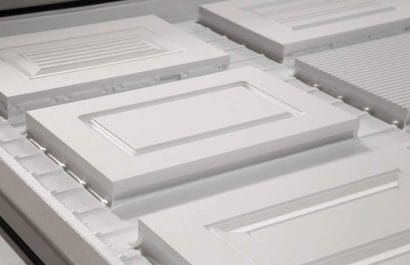

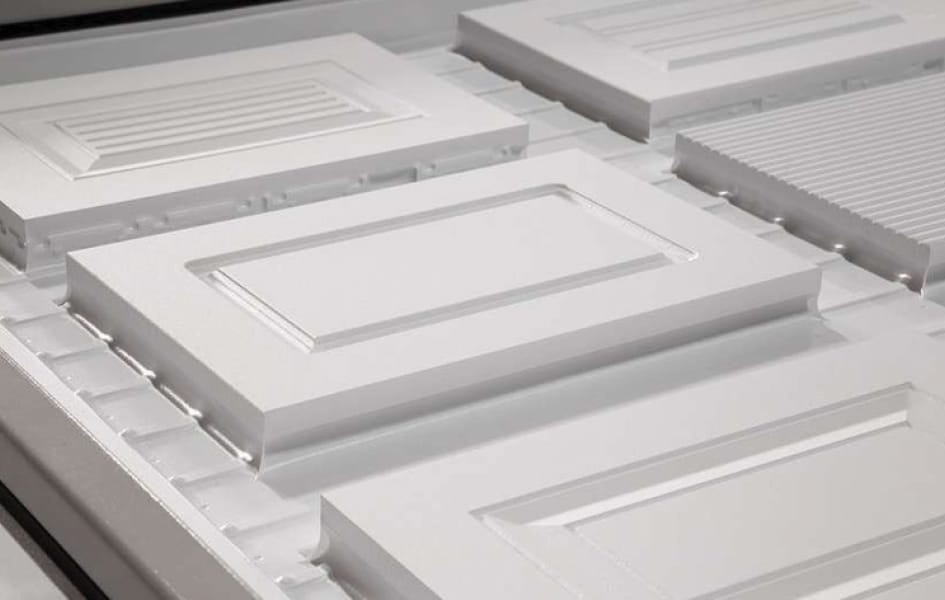

Vacuum membrane press machines apply PVC foil or natural wood veneer onto MDF, HDF, chipboard and similar panels using heat and vacuum pressure. They are used to produce aesthetic, durable and long-lasting surfaces on kitchen cabinet doors, interior room doors, bathroom cabinets and decorative panels in furniture manufacturing.
What are the advantages of PVC foil lamination?
PVC foil lamination gives furniture a scratch-resistant and moisture-resistant surface with a long service life. Its wide range of colours and patterns offers great flexibility in interior design. It is an economical, environmentally friendly and visually appealing solution, which is why it is one of the most preferred methods in modern furniture production.
Why are chrome rails used in Makser machines?
Unlike conventional transmission rails that wear out over time, the chrome rail systems used in Makser machines provide high durability and a long service life. Their quiet, low-friction and smooth movement helps maintain precision over many years of operation.
What is the function of the actuated valve?
In the lamination process, actuated valves control the vacuum and pressure systems automatically and precisely. This provides higher production speed, increased quality and a lower error rate.
Why are water-based vacuum pumps preferred in Makser machines?
Environmentally friendly water-based (water-cooled) vacuum pumps offer high performance with low maintenance costs. They support quiet, efficient and eco-friendly production processes.
What is the advantage of baked-paint (oven) coating on the machine?
Professional oven-baked paint protects the machines against scratches, impacts and chemicals. As a result, the machines retain their clean and aesthetic appearance for many years.
What advantages does silicone membrane technology provide?
Silicone membrane delivers outstanding performance especially in natural wood veneer applications. By applying uniform pressure across the entire surface with vacuum, it prevents air pockets and waviness, ensuring a smooth and flawless lamination quality.
How do Makser machines benefit furniture production?
From kitchen cabinet doors to decorative panels, Makser vacuum membrane press machines combine quality, speed and aesthetics in furniture production, adding real value to your products.
What are the benefits of the user-friendly design?
Thanks to the advanced control panel and intuitive interface, the machine is easy for any operator to use. This means shorter training times, fewer operator errors and higher overall productivity.
What is the function of the air tank in Makser machines?
The air tank reduces the load on the vacuum motor and allows the vacuum to build up faster and more evenly. This means lower energy consumption, longer motor life and uninterrupted production.
What are the advantages of using full-length heating elements?
The full-length heating elements used in Makser machines provide uniform heat distribution across the entire surface. This ensures higher quality, more consistent and error-free lamination.
Why is infrared temperature control important?
Infrared sensors measure the temperature on the panel surface in real time. This improves lamination quality, minimizes the risk of defects and helps produce aesthetic and durable products.
How does the thermal insulation curtain benefit production?
Special insulation curtains minimize energy loss. Heat stability is maintained, production efficiency increases and overall energy consumption is reduced.
What is the purpose of the perforated steel base?
The steel base is designed to withstand high temperature and pressure. Its perforated structure ensures homogeneous distribution of vacuum power, resulting in stable positioning, long service life and high-precision lamination.
What is Makser’s customer-oriented approach?
Makser not only manufactures high-quality machines, but also prioritises customer satisfaction as a core objective. It offers need-based solutions and continuous support that add value to your production processes.
How is after-sales support provided?
Makser’s professional technical team offers fast solutions for maintenance and repair needs, either remotely or on site. This keeps your production running without interruption.
What is Makser’s global presence?
MakserTeam is a strong brand extending from Türkiye to the global market. It provides after-sales support, spare parts and consultancy services on an international scale.
Is spare parts support available?
Yes. MakserTeam provides fast and reliable spare parts supply for all its machines. This ensures your production continues without disruption and extends the lifetime of your equipment.
What is the purpose of the bearing-mounted PVC foil roll holder?
Unlike conventional hanging systems, the bearing-mounted PVC foil holders used in Makser machines can be easily operated by a single person. Even large and heavy rolls can be pulled smoothly without high force, making foil changeover fast and effortless.

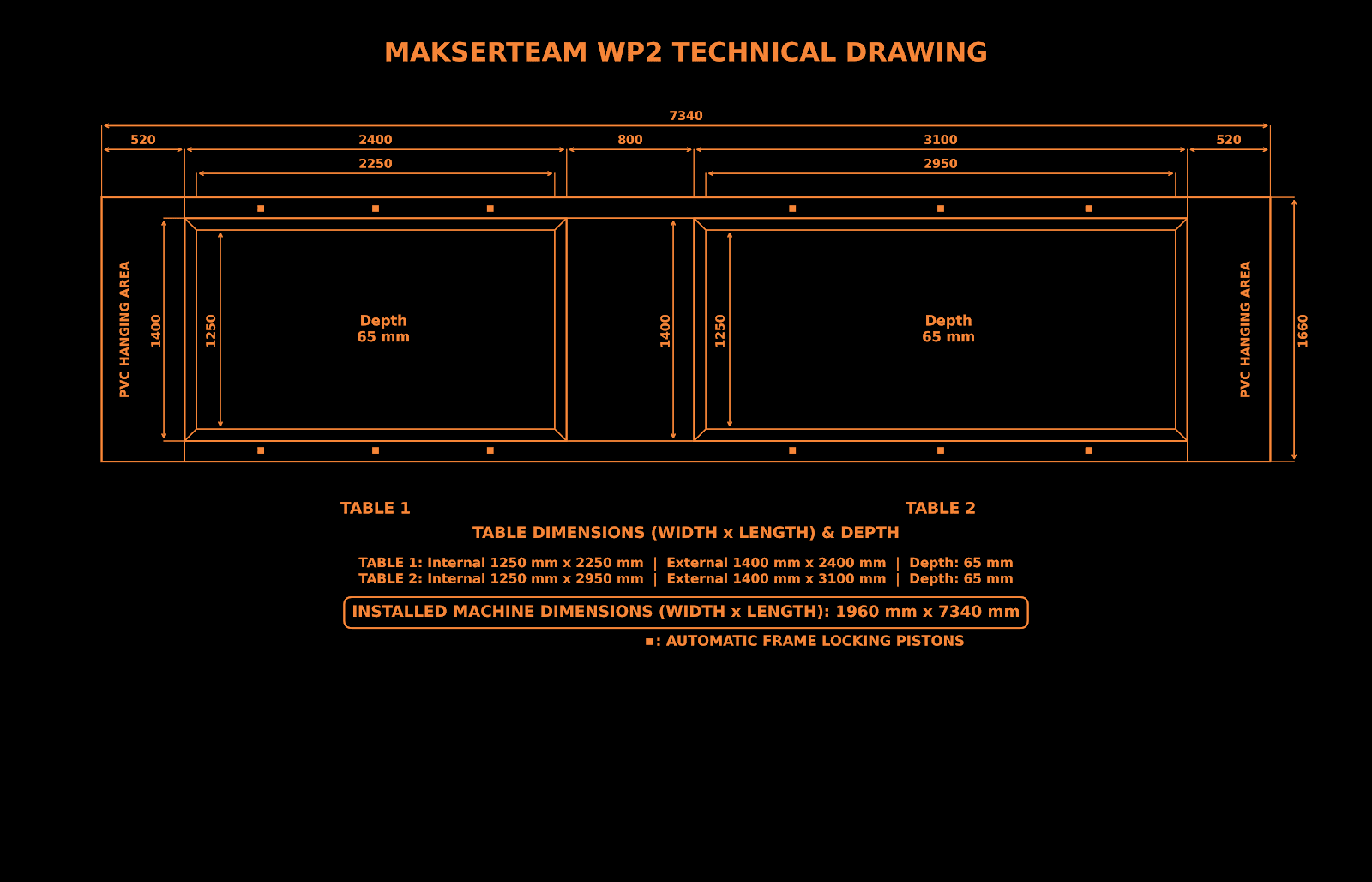

TECHNICAL SPECIFICATIONS
WP2 Vacuum Membrane Press Technical specifications may vary by project configuration.Technical specifications
Working tables
Feature Value / Description Table 1 — external dimensions 1400 × 2400 × 65 mm Table 1 — internal dimensions 1250 × 2250 × 65 mm Table 2 — external dimensions 1400 × 3100 × 65 mm Table 2 — internal dimensions 1250 × 2950 × 65 mm Heating, vacuum and energy
Feature Value / Description Heating unit 380 V / 1200 WInfrared heaters Vacuum system 160 m³/hLiquid-cooled vacuum pump Air buffer tank 200 m³Buffer tank for rapid, balanced air transfer during the vacuum process Temperature sensor Infrared sensor for direct temperature measurement of PVC foil or material surfaces Operating air pressure 6–8 barDry and clean compressed air Total installed power 40 kW Approximate energy consumption 1.69 kWhPer pressing cycle Production and applications
Feature Value / Description Cycle time 45 seconds to 5 minutes, depending on material thickness, physical properties and colour PVC foil loading unit 4Roll capacity; PVC roll holder supported on both sides for easy rotation Mould system Standard flat base; optional 24 mm square mould with air circulation Single-piece pressing A separator allows production of single pieces or smaller batches of cabinet doors PVC foil clamping 0.20–10 mmClamping and gripping of PVC materials Applications Kitchen cabinet doors, interior shelves, doors and similar applications Control and motion systems
Feature Value / Description Fault warning system The operator panel gives audible and visual warnings if positioning is incorrect Control system Programmable industrial PLC and touchscreen operator panel Electrical and electronic equipment Schneider automation and switchgear components with heat-resistant cables Drive motor and gearbox 0.37 kW · 1/15 · S40Electric motor and worm gearbox Gear drive system Module 2 spur gears; straight-hub pinions with 8 and 25 teeth Carriage motion system 20 mmChrome-plated lower support shaft and linear guide (quiet operation throughout service life) Machine dimensions and shipping
Feature Value / Description Machine dimensions — W × L × H 2000 × 7340 × 1700 mm Standard weight 1650 kgMay vary by project configuration Shipping dimensions — container version, part 1 2000 × 3300 × 2100 mmW × L × H Shipping dimensions — standard version, part 1 2000 × 3300 × 1700 mmW × L × H Shipping dimensions — standard version, part 2 2000 × 3300 × 1100 mmW × L × H Machine feet Adjustable machine feet Optional equipment
Feature Value / Description Silicone membrane option Membrane frame for natural wood veneering and wood bending applications Cooling system Fan system for 20% faster cooling in door skin production Italian oil-lubricated vacuum pump 100 m³/hItalian oil-lubricated vacuum pump Warranty and documentation
Feature Value / Description Warranty 1-year warranty on standard parts and labour; 2 years of technical support. Burnout, breakage and transport damage are excluded. Certificates CE, TSE-HYB, ISO 9001, Turkish Domestic Goods Certificate, Euro 1 Movement, Sabre, Kargo X Technical documents
“Güvenli üretim için doğru çözüm ortağınız: MAKSER”
